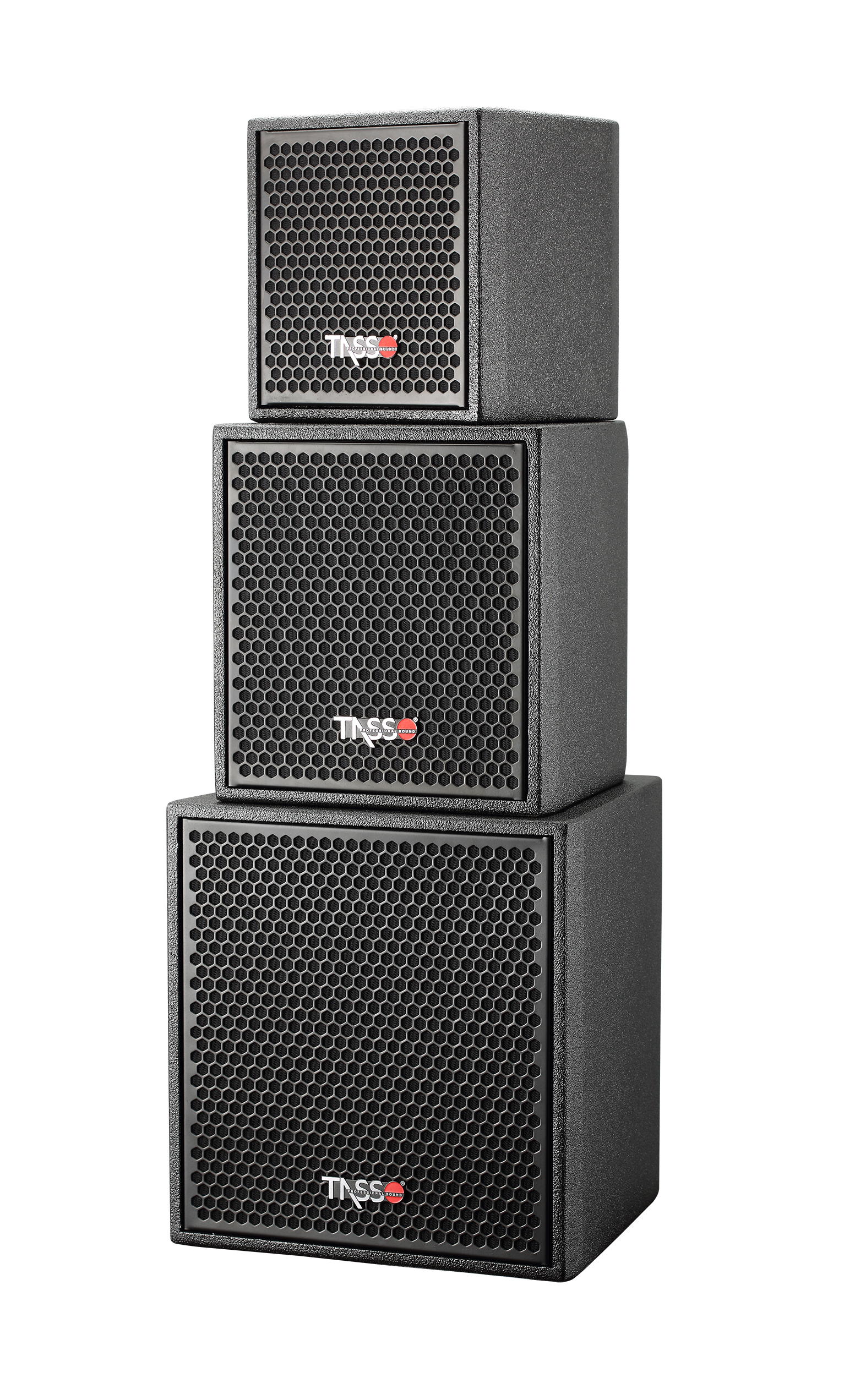

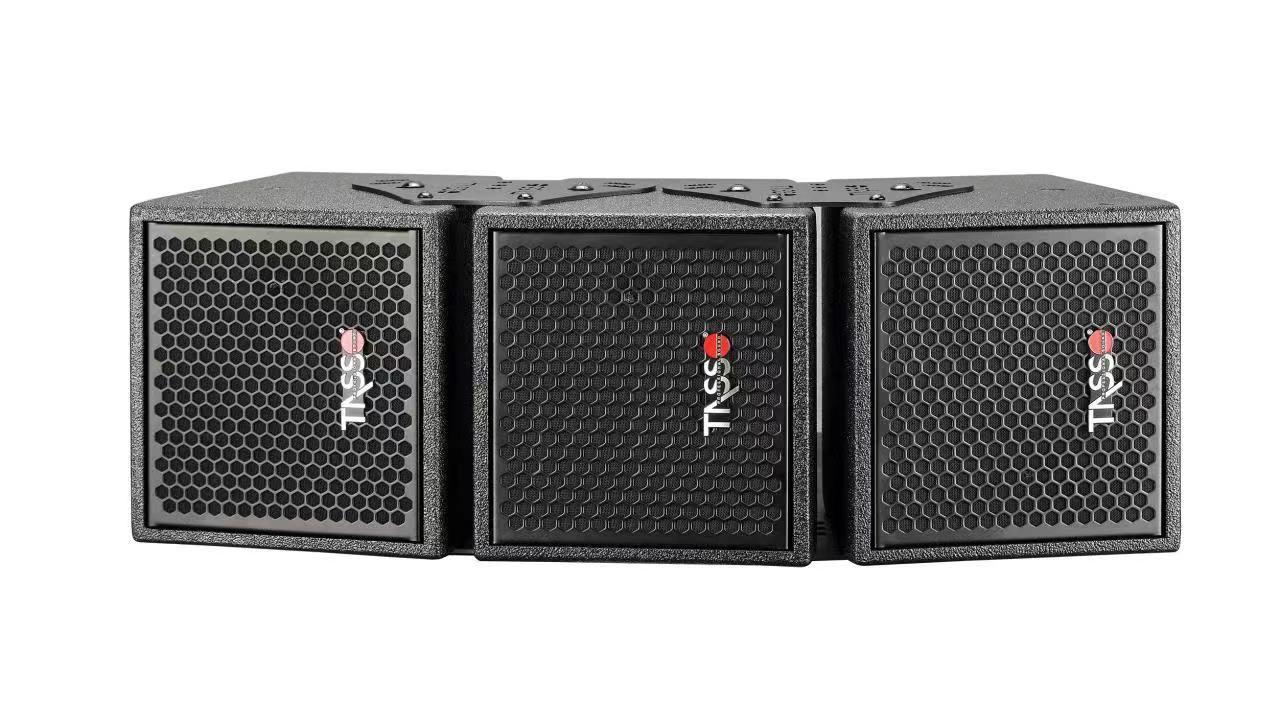

The Cx series is TASSO's high-end fixed installation loudspeaker system. At present, it includes three models of Cx6, Cx8 and Cx10, all of which use two-way coaxial full-frequency unit, and low-frequency reflection design acoustic structure system. Each Cx Series loudspeaker system consists of a coaxial driver in combination with a passive crossover network. The coaxial design provides a tapered coverage that is symmetrical both horizontally and vertically, allowing the Cx cabinet to be installed in either form without distinguishing between horizontal and vertical. At the same time, the unique "coaxial" and "common point" structure of coaxial loudspeakers, the characteristics of the treble and bass sound-emitting parts being driven by the "same sounding point" on the "same axis" make Cx very good in its rated frequency band. frequency response and phase characteristics, so that listeners get better sound quality.
| CX6 | Single amplifier driver compact | ||
| Type | Two-way coaxial speaker system | ||
| Rated Power | 80W | ||
| Peak Power | 320W | ||
| Rated Impedance | 8Ω | ||
| Sensitivity | 91dB | ||
| Maximum Sound Pressure Level | 116dB | ||
| Frequency Response | 120Hz-20kHz | ||
| Cover Fan Bandit Interface | 1 x NL4+4P | ||
| Net Weight | 4.5kg | ||
| Dimensions | WHD (210 x 218 x 213 mm) |
| CX8 | Single amplifier driver compact | ||
| Type | Two-way coaxial speaker system | ||
| Rated Power | 120W | ||
| Peak Power | 480W | ||
| Rated Impedance | 8Ω | ||
| Sensitivity | 93dB | ||
| Maximum Sound Pressure Level | 120dB | ||
| Frequency Response | - 6dB 90Hz-20kHz | ||
| Cover Fan Bandit Interface | 100° Tapered 2x NL4 | ||
| Net Weight | 6.8kg | ||
| Dimensions | WHD (255 x 268 x 256 mm) |
| CX10 | Single amplifier driver compact | ||
| Type | Two-way coaxial speaker system | ||
| Rated Power | 220W | ||
| Peak Power | 880W | ||
| Rated Impedance | 8Ω | ||
| Sensitivity | 96dB | ||
| Maximum Sound Pressure Level | 125dB | ||
| Frequency Response | -6dB 70Hz-20kHz | ||
| Cover Fan Bandit Interface | 100° Tapered 2x NL4 | ||
| Net Weight | 10.8kg | ||
| Dimensions | WHD (310 x 322 x 305 mm) |
