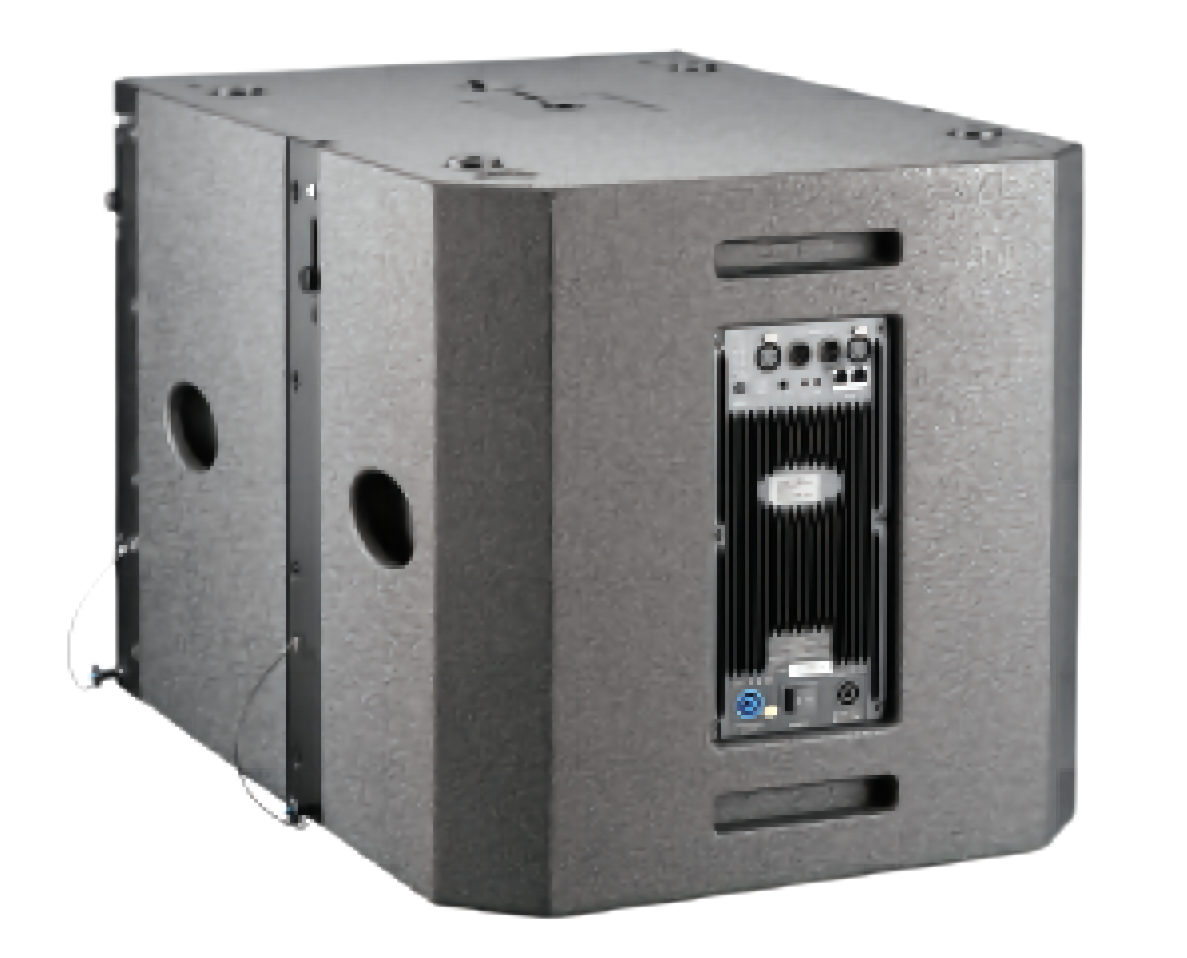

T-Lite is an active performance audio system released by Tasso Audio in 2021. Since the launch of the industry benchmark product T2 in 2010, Tasso has accumulated rich experience in integrating high-power active speakers and core technologies. Production of active speakers, Tasso has more experience, the new products launched are also more stunning.
The number of T-Lite system is configured as 1+2 or an integer multiple of this configuration, that is, 1 active low-frequency speaker box paired with 2 line array full frequency speaker boxes; When expanding the system, it is necessary to increase the number in multiples according to this standard. Multiple groups of speaker systems can be combined to expand into systems with higher sound pressure levels. Continuing the integration concept of T2, T-Lite integrated power amplifier modules are uniformly installed inside the subwoofer, and the full frequency modules are designed as passive. The maximum sound pressure level of a single standard system is as high as 133dB (peak), with a frequency response range of 42Hz-18kHz and a horizontal coverage range of 100°. The entire system is sprayed with a polyurea protective coating, and it is consistent with the quality assurance of Tasso products.
Product Description
Functional Role and Target Users of the T-LITE System
The Active integrated line array speaker system T-LITE is engineered to meet the demands of sound equipment companies and musikanlagen hersteller providing scalable, versatile audio solutions for live sound reinforcement and rental markets. Its 1+2 configuration combines an active low-frequency speaker module with two passive full-frequency arrays, allowing rapid deployment in various event environments including corporate venues, theaters, and houses of worship. As a product targeted to professional speaker suppliers and audio equipment companies, it supports modular expansion to scale output for medium to large venues, optimizing system compatibility and facilitating integration into existing audio infrastructures.
Technical Specifications Detailing Design Features and Signal Processing
This system integrates a three-channel power amplifier within the subwoofer, delivering 2×750 W at 4 Ω and 1400 W at 8 Ω, enabling a peak SPL of 133 dB across a frequency range of 42 Hz to 18 kHz with 100° horizontal coverage. The DSP suite incorporates Analog 2-in-3-out architecture, 96 kHz/24-bit ADC, adjustable presets, and RS-485 networking capable of syncing up to 99 units, making it suitable for complex setups. The polyurea-coated enclosure provides robust durability required by subwoofer companies and subwoofer box builders for outdoor and touring conditions. Inclusion of parametric EQ, true-power compression, and peak limiting enhances precise audio control, matching the technical expectations of audio equipment manufacturers and subwoofer parts suppliers.
Industry Applications and Integration into Professional Audio Environments
The T-LITE system’s versatile, scalable configuration makes it suitable for a range of professional industry environments including corporate events, concert sound reinforcement, and rental fleets managed by wholesale audio equipment providers. Its advanced onboard processing and network synchronization cater to the requirements of musikanlagen hersteller and sound equipment companies tasked with large-scale deployments. Furthermore, the durability of the construction and efficient power consumption render it compliant with demanding operational standards. Integration with external subwoofer units supplied by subwoofer manufacturers and subwoofer box makers ensures seamless compatibility within complex systems, enhancing ROI for audio equipment companies and speaker suppliers specializing in rental and touring solutions.
Structural and Modular Design Benefits of T-LITE
The modular 1+2 active/passive architecture supports scalability demanded by subwoofer box makers and sound equipment companies seeking flexible configurations. By housing the amplification directly within the subwoofer enclosure, the system reduces cabling complexity and power losses, streamlining setup for musikanlagen hersteller. Polyurea protective coating enhances resistance to environmental wear, a critical feature for subwoofer manufacturers prioritizing durability. Integration of passive full-frequency modules reduces amplifier channel requirements and facilitates easier maintenance and transport, which appeals to wholesale audio equipment distributors specializing in efficient, reliable solutions.
Performance and Operational Efficiency for Professional Users
The T-LITE line array system achieves outstanding audio performance with a maximum SPL of 133 dB and broad frequency response, delivering clear sound reinforcement suitable for demanding live events. Onboard DSP features, including parametric EQ and high-resolution ADCs, allow fine-tuning by audio equipment companies and speaker suppliers to meet precise acoustic requirements. The RS-485 networking capability enables synchronized multi-unit deployments, improving workflow efficiency for rental fleets and musikanlagen hersteller managing complex systems. Power efficiency with 700 W consumption and wide operational voltage range ensures compatibility in various environments, enhancing value for subwoofer parts suppliers and subwoofer builders focused on operational stability.
DSP
Analog 2 in 3 out, 96kHz/24bit ADC;
4 groups of preset parameters can be called instantly;
Equipped with a total volume knob;
RS485 networking, which can simultaneously accommodate 99 sets of equipment for online joint debugging;
Built-in functions including but not limited to gain, level, high and low pass filtering, all-pass filtering, full-featured parametric equalization,true-power compressor, peak limiter, delayer, etc.;
Attached with copyrighted Chinese/English online control software;
Amplifier moduel
3 channel power amplifiers, 2×750W/4Ω+1400W/8Ω
Rated input sensitivity: +4dBu
Adaptive global wide voltage band with PFC power supply
Rated input power: 100-240 V AC @ 50-60Hz
Extreme operating power: 85-264 V AC
Rated power consumption: 700W (1/4 maximum power)
Rated atmospheric conditions: -20℃ to 65℃, humidity: 0 to 90%
Use Scenarios
Application in Live Sound Reinforcement and Touring Rentals
In the live event industry, this speaker system plays a pivotal role in delivering scalable, high-SPL audio coverage for concerts and touring productions managed by sound equipment companies and musikanlagen hersteller. Its integrated amplification and DSP networking simplify setup and synchronization across multiple units, meeting the rigorous demands of dynamic rental environments. The robust polyurea coating supports outdoor deployment under variable weather with minimal maintenance, an important asset for subwoofer manufacturers and subwoofer box builders supplying rental fleets. Compatibility with external subwoofer systems allows flexible configurations essential for multi-venue tours managed through wholesale audio equipment procurement workflows.
Use in Corporate and Large Venue Audio Installations
For corporate events, conference centers, and multi-use venues, the T-LITE system serves as a professional-grade audio solution tailored to fixed and semi-permanent installations supplied by audio equipment companies and speaker suppliers. The comprehensive DSP controls and preset management facilitate rapid adaptation to varying venue acoustics. Its scalability enables musikanlagen hersteller to address audio coverage for medium to large spaces with consistent sound pressure distribution. The system’s power efficiency aligns with venue energy use policies, while integration with subwoofer parts suppliers’ external modules enhances low-frequency extension, optimizing audio performance for event planners emphasizing clarity and compliance.
FAQ
How should the T-Lite active system be configured for first-time deployment?
Position the array at the required height, connect the signal feed, and set gain, crossover and limiter levels within the onboard DSP. When paired with a subwoofer speaker or external low-frequency unit, ensure proper phase alignment for consistent coverage.
What warranty and support services are included with the T-Lite system?
Warranty covers manufacturing defects within the defined service period. Technical support includes setup assistance, recommended DSP presets, and integration guidance for operators sourcing equipment from a musikanlagen hersteller.
Is the T-Lite system compatible with external subwoofers or integrated bass modules?
Yes. Although it is an active system, it can be paired with external subwoofer units, including 15 inch subwoofer models or large-capacity 15 inch subwoofer box enclosures. Standard signal routing ensures seamless integration.
What are the typical lead times for single units and bulk project orders?
In-stock units follow standard dispatch cycles. Bulk purchases depend on warehouse allocation and freight scheduling, especially for buyers working with subwoofer manufacturers or project-scale procurement.
Does the T-Lite store, process or transmit user data during operation?
No. All DSP adjustments occur locally and the system contains no data-logging or user-identifying modules. Operational privacy is fully controlled through external signal sources.
