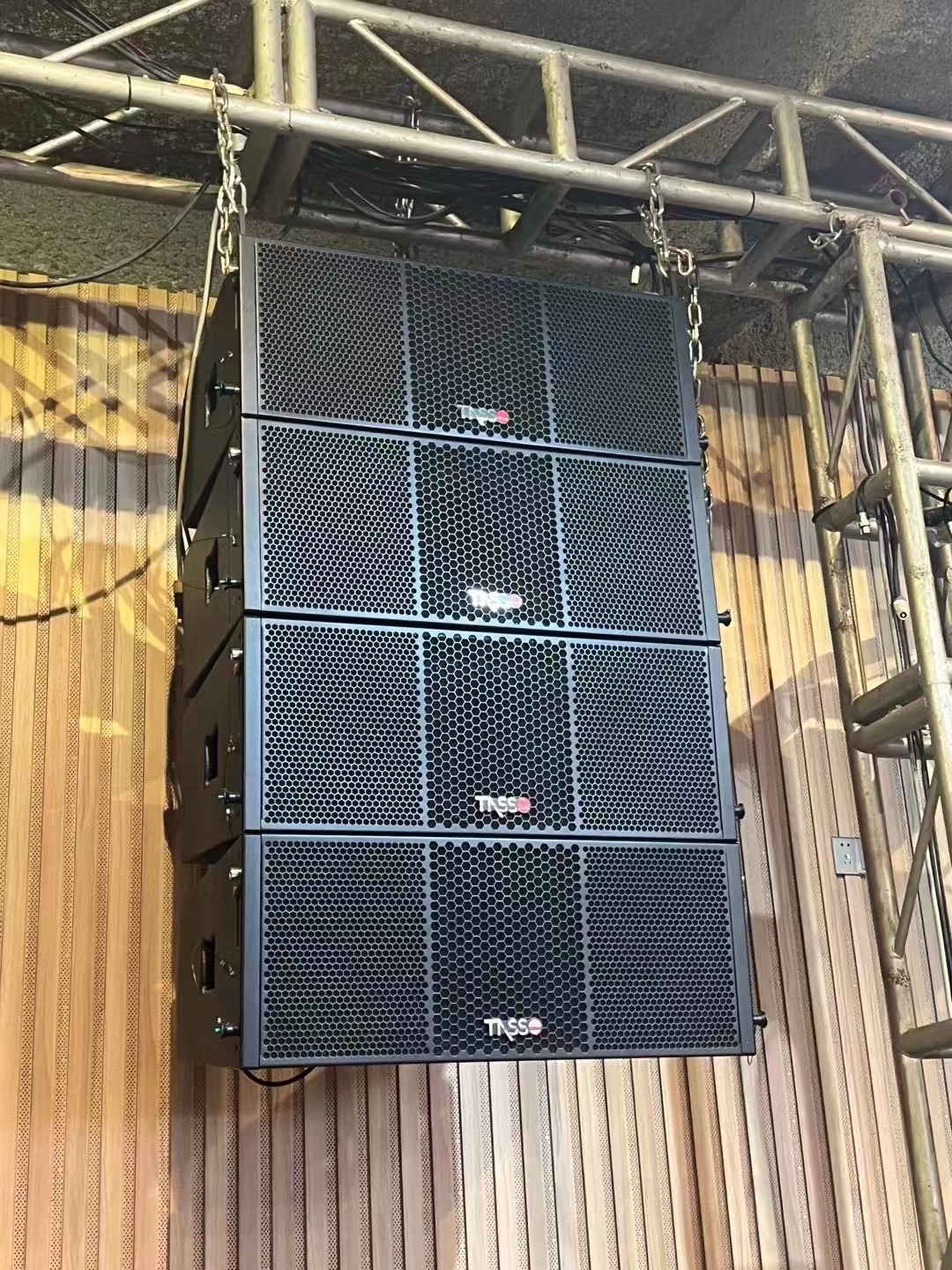

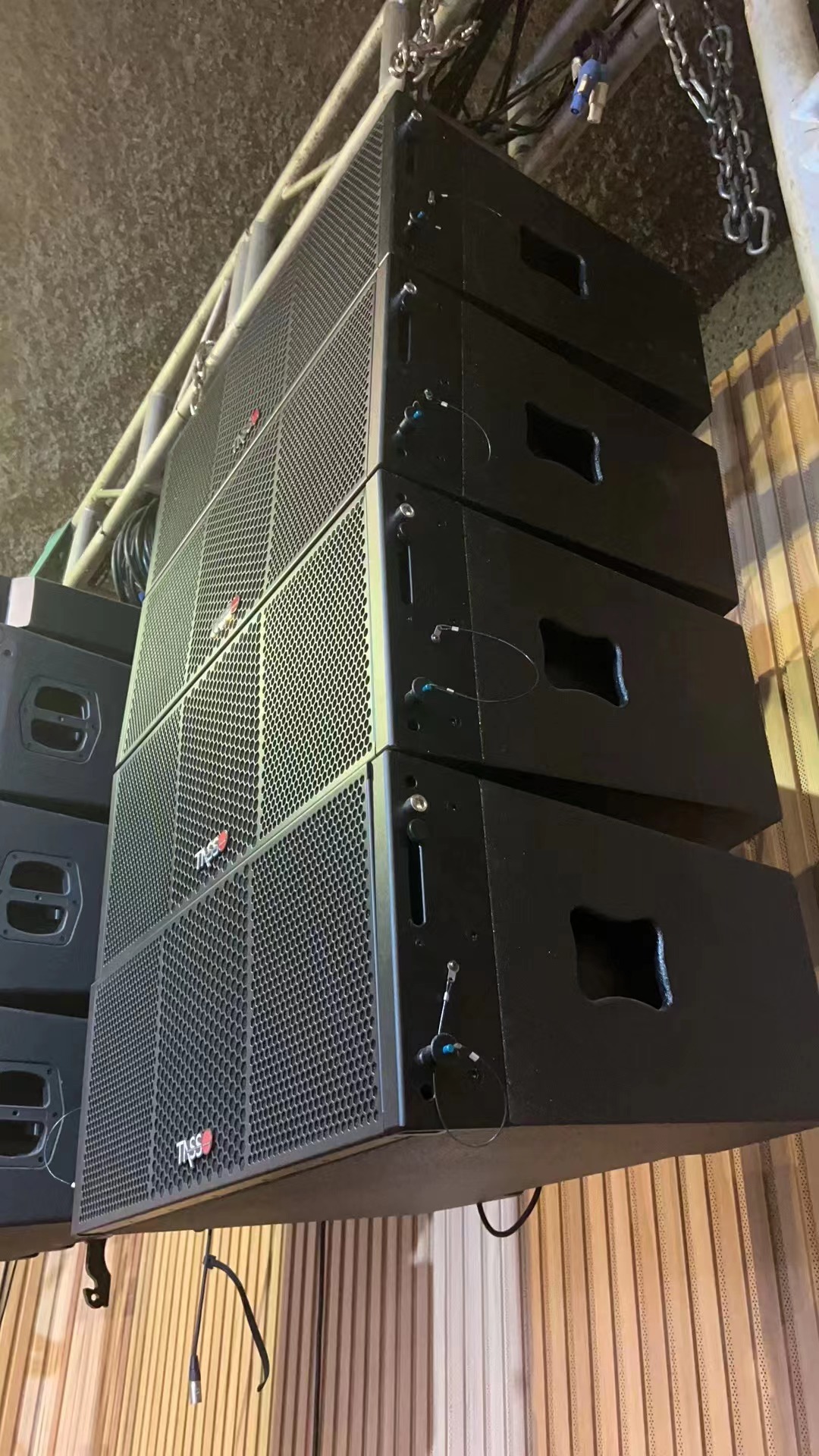

PT610 double 10 inch line array with flying 18 inch sub

PT6 series is a medium-sized line array speaker system developed by TASSO, which can be widely used in music or music and All kinds of medium and large halls that use both languages, such as: theaters, multi-functional halls, banquet halls, large sand table displays, convention centers,School playground etc. Currently the series includes a dual 10-inch two-way full-frequency module PT610 and an 18-inch hangable low-frequency module Block PT618B. In order to further expand the lower limit of system reproduction and make the sound system suitable for medium and large halls with modern music reproduction.

The PT6 system can also be used with the general-purpose dual 18-inch subwoofers.

PT610 is a line array system full-range module with a two-way design. The acoustic design adopts horizontal symmetry, that is, The loudspeakers are installed on both sides of the cabinet, and the center of the cabinet is the tweeter. The number of modules can be superimposed on the number of modules through the built-in connectors.

It can form a vertical line array speaker system with excellent performance. The number of full-range modules used is usually based on the sound pressure required by the hall.Level and acoustic reverberation radius to draw up.

The speaker and a compression driver with 1.4-inch throat and 3-inch voice coil diaphragm are equipped with a horn-type tweeter with a wave guide. Passive crossover mode and active crossover mode can be select through the switch on the wiring board. In passive crossover mode, PT610 has a continuous power of 600W, a rated impedance of 8Ω, a frequency response range of 50Hz-20kHz, and a sensitivity of up to 102dB. It can also be used as the main sound reinforcement speaker for medium and large halls for language purposes without configuring low-frequency speakers.

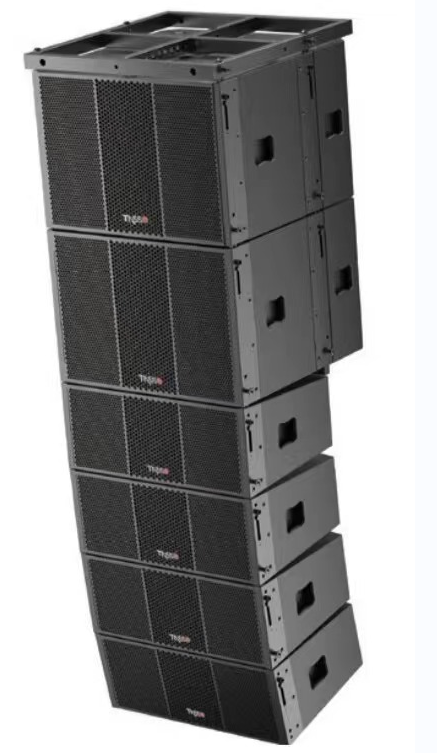

For a multi-functional system with both music and music, the PT618B line array low frequency module can be configured. The width of PT618B is the same as that of PT610, and the hanging parts are compatible, which means that PT618B and PT610 can be hung and installed together. PT618B is a low-frequency speaker system with good performance. It is equipped with an 18-inch high-efficiency cone-disk low-frequency speaker unit. Its frequency response range is 40Hz-300Hz. It can be fully matched with PT610 to expand the weight of the entire audio system through proper crossover point debugging. Let go of the limit. Generally, the recommended configuration quantity is to match every 2 PT610 with 1 PT618B, that is, "2+1" configuration.

PT610/PT618B    Technical parameter
