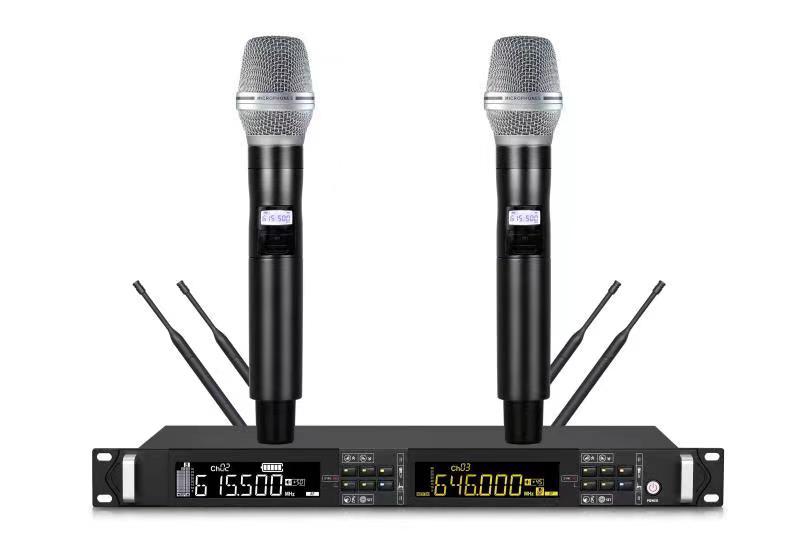

High-end true diversity wireless microphone
ZYG-25 professional performance wireless microphone system is a suitable for professional stage singing wireless microphone system, using many leading industry high-tech design in one: ultra high frequency segment (UHF) transmission, truly split reception, double CPU control, liquid crystal display, metal shell, PLL phase lock ring technology, noise detection, etc., has the advantages of 160 frequency point adjustable, easy to operate. Using the microcomputer CPU control: the whole hardware circuit of the system is controlled by the microcomputer, which can be conducted for frequency selection, display, silent locking, battery capacity monitoring and other processing, to realize the various functions of the traditional models that are not easy to achieve. LCD display: using a high-performance LCD for display, all the control menus can be displayed on the LCD screen, easy to control the system.

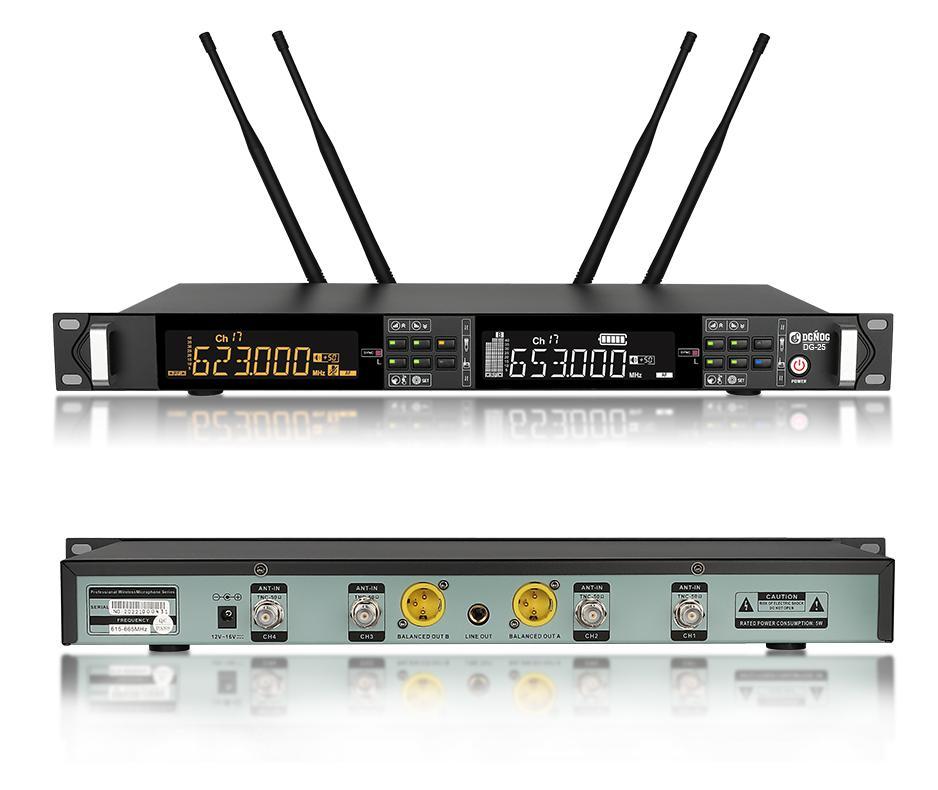

Receiver
Chassis Specification: standard 1U chassis
Number of channel groups: dual-channel
Carrier frequency band: UHF 513-558MHz / 615-665MHz / 780-820MHz
modulation mode:FM
Oscillation mode: a PLL phase-locking frequency synthesizer
Frequency stability: ± 0.0005%
Sensitivity: S / N> 60dB at 25KHz in offset, and 6dB μ V in input
Maximum offset: ± 45kHz
Band width: 40MHz
Comprehensive S / N ratio:> 108 dB
synthesize T.H.D.：<0.4% @ 1 KHz
Integrated frequency response: 65Hz~18kHz ± 3dB,
Maximum output voltage: balanced: -20dBV / 100 Ω,
Non-balanced formula: -4dBV / 5 KΩ.
Output socket: XLR balanced and 6.3 φ unbalanced socket
Panel buttons: handheld and Fanny pack buttons to switch and display
Effective working distance: generally 200 m (open space)
Power supply: 100-240V AC50 / 60 Hz, 10W
Weight: 4.3KG
Dimensions (mm): 421 (L) 43 (H) 206 (W)

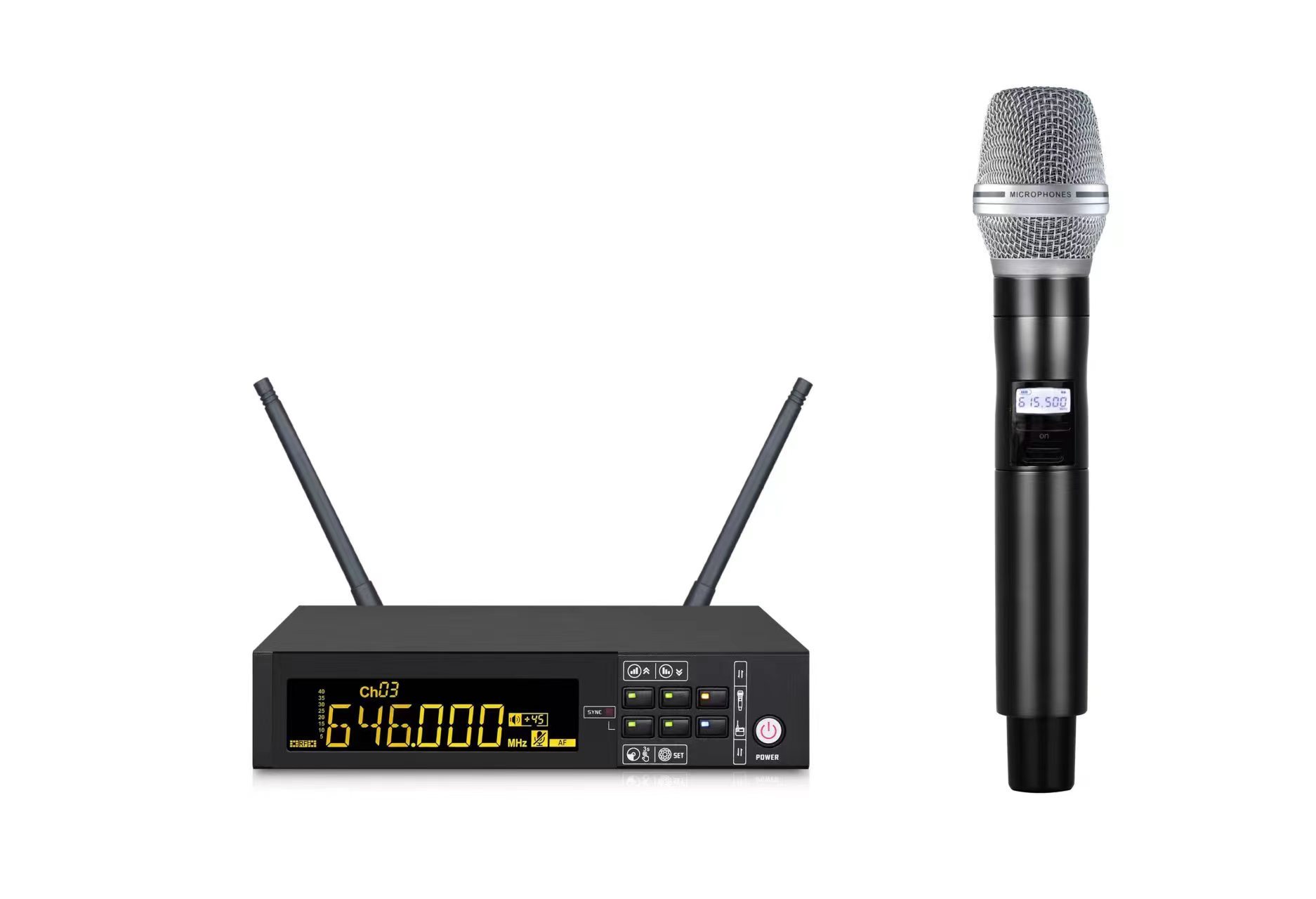

Handheld transmitter microphone
Carrier frequency band: UHF 513-558MHz / 615-665MHz / 780-820MHz
Oscillation mode: a PLL phase-locking frequency synthesizer
Harmonic Radiation: <-63dBm
Band width: 80MHz
Maximum offset: ± 45KHz
Power output: 10mW
Frequency response: 50Hz~18KHz
Maximum input sound pressure: 130dB SPL
Sound head: moving circle type
RF power output: 8mW; 8mW / 15mW (Selectable)
Battery: AA 2
Current consumption: <110 mA
Battery power consumption: Almost 6 Hours
Dimensions (mm): 265mm length 56mm diameter

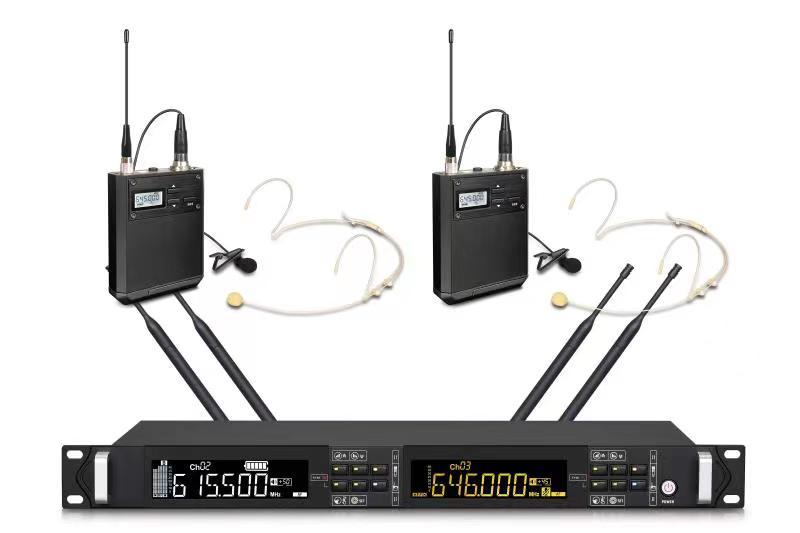

Waist-mounted transmitter microphone
Carrier frequency band: UHF 513-558MHz / 615-665MHz / 780-820MHz
Oscillation mode: a PLL phase-locking frequency synthesizer
Harmonic Radiation: <-63dBm
Band width: 40MHz
Maximum offset: ± 45KHz
RF power output: 10mW
Frequency response: 50Hz~18KHz
Maximum input sound pressure: 130dB SPL
Sound head: capacitive type
Battery: AA 2
Current consumption: <110 mA
Battery power consumption: Almost 6 Hours
